Products Name：

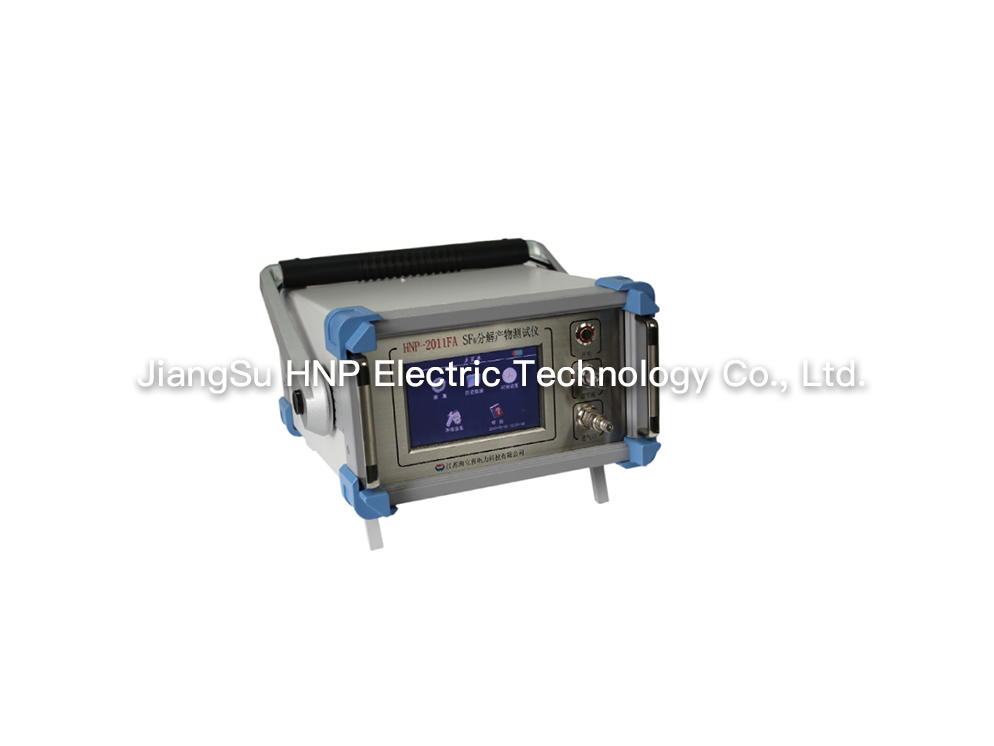

HNP-2011FA Decomposition Product Tester
Overview
This instrument is a modular test device independently developed by our company. It adopts imported electrochemical sensor, anti-cross interference design, built-in pump pressure type chamber sample gas removal system, dynamic temperature correction and compensation technology, and different kinds of carrier gas error correction technologies to ensure the detection precision, and the test data is automatically saved, and can be uploaded to your computer or printed directly.
The SF6 decomposition product tester (fault location analyzer) is a high-precision intelligent portable detector which can quickly detect the content of main decomposition products (SO2, HF, H2S and CO) of SF6 gas in the SF6 insulation equipment such as SF6 circuit breaker, current transformer, bushing, GIS and voltage transformer.
Main Features
Multiple components can be detected at the same time and displayed separately
Single component can be monitored separately to avoid waste of sensor life
Patented gas chamber, taking into account anti-interference and sample gas cleaning
Temperature compensation and detection end point judgment
AC/DC, built-in lithium battery to achieve continuous operation for 8 hours
800×480 TFT touch screen with friendly interface
Technical Parameters
Measurement range | SO2: 0~100μL/L, typical precision range 0~50μL/L |
H2S: 0~100μL/L, typical precision range 0~50μL/L | |
CO: 0~1000μL/L, typical precision range 0~500μL/L | |
HF: 0~10μL/L (optional) | |
Precision | SO2 and H2S: In case of measured value ≤10μL/L, ≤±0.5μL/L |
In case of measured value >10μL/L, ≤±5% | |
CO: In case of measured value ≤50μL/L, ≤±2uL/L | |
In case of measured value >50uL/L, ≤±4% | |
HF: In case of measured value ≤10μL/L, ≤±1μL/L | |
Resolution | SO2, H2S and CO: 0.1uL/L |
HF: 0.5uL/L | |
Response time | ≤30S |
Flow rate of sample gas | 50~300mL/min |
Communication interface | USB2.0 |
Working power supply | AC 220V/50Hz or built-in lithium battery |
Working environment | Ambient temperature: -20°C~50°C |
Relative humidity: 0~90%RH | |
Dimensions | About 270mm×300mm×180mm |
Storage capacity | ≮200 |
